Injection Moulding is a super flexible and popular manufacturing technique used for making plastic part with great accuracy and repeatability. Whether for cars, electronics, home products, or industrial purposes, our moulding ensure consistency, durability, and cost-effectiveness. At Northern Plastics, we work together in different industries to deliver high-quality moulding solution which focuses on accuracy and performance throughout the process. Understanding the components and working of an injection moulding machine is very important to run efficient operation and keep production quality at its best.
What is Injection Moulding?
Injection moulding is a manufacturing technique where melted plastic is injected into a mould to create a specific shape. After the material cools and hardens, it gets removed from the mould as a final product. This method is perfect for mass production since it allows us for high-speed output, complex designs and reliable dimensional accuracy. The main benefit of injection moulding is its efficiency—once the mould is created and ready, it can produce thousands or even millions of identical parts with very little or minute variation.

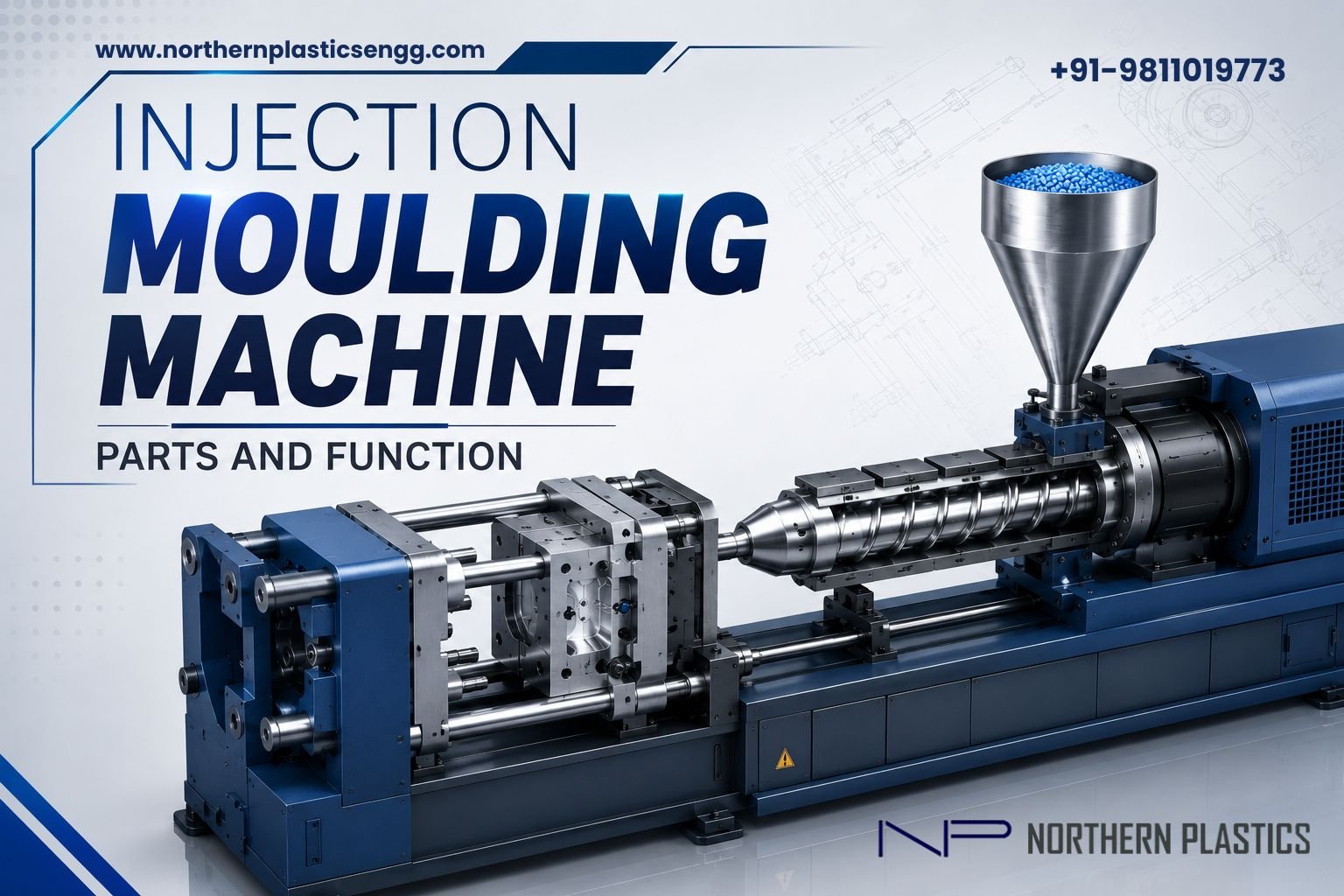

Parts & Functions of Injection Moulding:
- Hopper:
It serves as the initial stage of injection moulding machine. Plastic granules or pellets are placed into hopper, whether they are dried or eliminate excess moisture. This process ensures a regular material supply and helps to avoid issues like splay or bubbles.
- Barrel:
It contains screw which is surrounded by heating bands. As the pellets travel through the barrel, it starts to melt from both the external heat and frictional heat produced by the rotation of screw.
- Screw:
The screw plays a crucial role in mixing, melting and pushing plastic material forward. It also generate the pressure which is needed to inject the liquid plastic into the mould cavity. The design of the screw has the significant impact on the quality of the melt and duration of the cycle.
- Nozzle:
It helps to link the barrel to the mould and directs the melted plastic into the mould. It needs to maintain the proper temperature to avoid early cooling or material blockage.
- Clamping unit:
The clamping unit in Injection Moulding machine ensures that the mould halves is tightly closed while injection takes place. It includes:
- Fixed platen
- Moving platen
- Clamping mechanism
The clamping force stops the mould from opening because of the injection pressure.
- Mould:
The mould takes the shape of the final product. It has the core and cavity, runner system, gates, cooling channels and ejector mechanisms. A well-designed mould ensures accuracy, long lasting performance and effective cycle times.
- Cooling System:
The cooling channel in the machines helps the water to rotate which quickly lower the temperature of the melted plastic. As cooling takes the large time in this cycle, effective cooling has a direct effect on productivity.
- Ejector System:
After the part solidifies, the ejector system pushes it out of the mould with the help of ejector pins, plates or sleeves. It ensures proper ejection is crucial to release the part without any damage.
Conclusion:
Understanding the major components and functions of an injection moulding machine is vital to keep production running smoothly, quality consistent and downtime to a minimum. Each part, from the hopper to the ejector system, plays a significant role in keeping the accuracy and efficiency of injection moulding on part. At Northern Plastics, we pride ourselves in delivering dependable moulding services through the amalgamation of advanced engineering knowledge and a deep understanding of customer requirements. Whether you need mould design, machine support or comprehensive injection moulding services, our personnel take any opportunity to help your business achieve the best in manufacturing standards.
